S
M
L
XL
11 - SEAT TUBE (C-T)
400
453
483
533
22 - TOP TUBE (EFF)
565
579
608
645
33 - HEAD TUBE
110
115
132
153
44 - CHAINSTAY
445
445
445
445
55 - BB HEIGHT
322
320
320
320

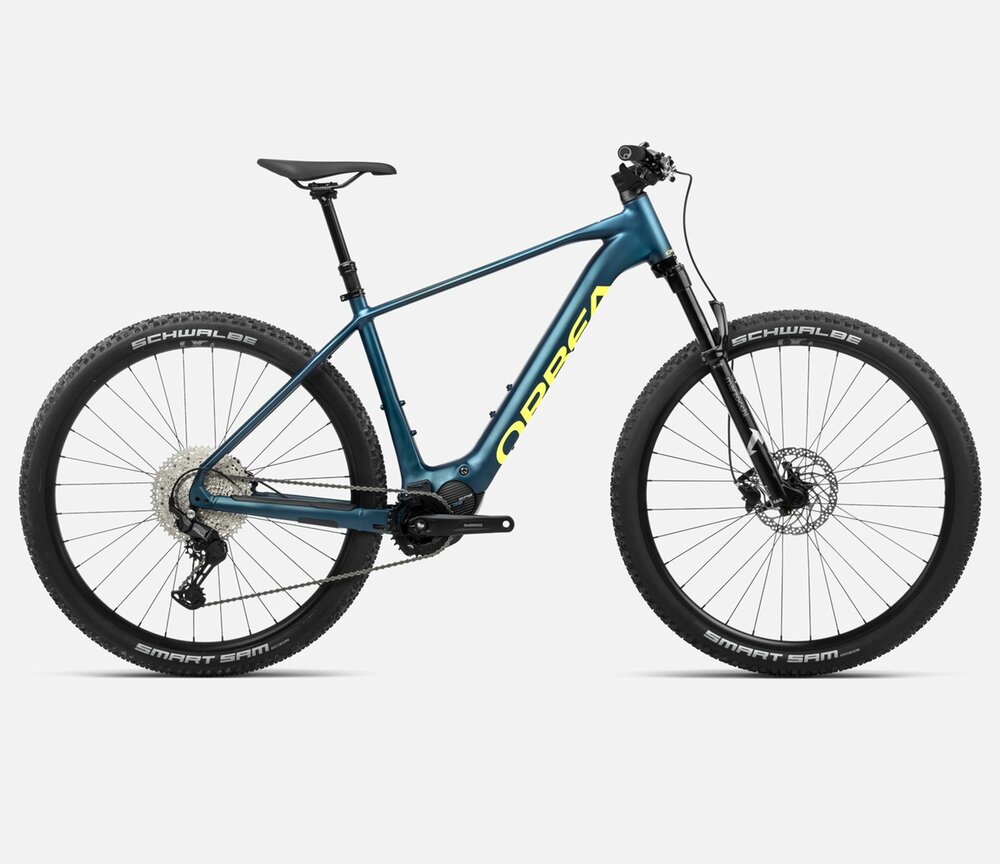

Orbea Urrun 30
Product information
£3,699.00
£3,699.00
£3,699.00
Description
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series
Additional Information
Features
SPECIFICATIONS
FRAMES
FRAME
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
FORK
Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
HEADSET
FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CHAINRING
Alloy EP8 32t
CRANK
Shimano Steps EM600
SHIFTERS
Shimano Cues SL-U6000
CASSETTE
Sun Race 11-51t 11-Speed
REAR DERAILLEUR
Shimano Cues U6000 GS Shadow
CHAIN
Shimano LG500
CHAINGUIDE
Orbea Rise chainguide
COCKPIT
HANDLEBAR
OC Mountain Control MC31, Rise20, Width 800
STEM
Alloy forged, 35mm interface, -6º, ICR
BRAKES
BRAKES
Shimano MT201 Hydraulic Disc
BRAKES CONFIGURATION
WHEELS
WHEELS
Alloy, Tubeless, 29", 29c, 32H
TYRES
Schwalbe Smart Sam Performance, 29x2.35, Addix, Black
ACCESSORIES
PEDALS
VP-537 Black
LIGHTS
COMPONENTS
SEATPOST
OC Mountain Control MC21, 31.6mm, Dropper
SEATPOST LEVER
Shimano SL-MT500
SADDLE
Fortune QF-3091
EBIKE
MOTOR
Shimano EP801-RS
BATTERY
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
RANGE EXTENDER
N/A
DISPLAY
Shimano EN500
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
SIZE
CRANK
STEM
HANDLEBAR
HEIGHT
S
170
70
800
61.1"-66.9"
M
170
70
800
65.0"-70.9"
L
170
70
800
70.1"-74.8"
XL
170
70
800
72.8"-78.74"
