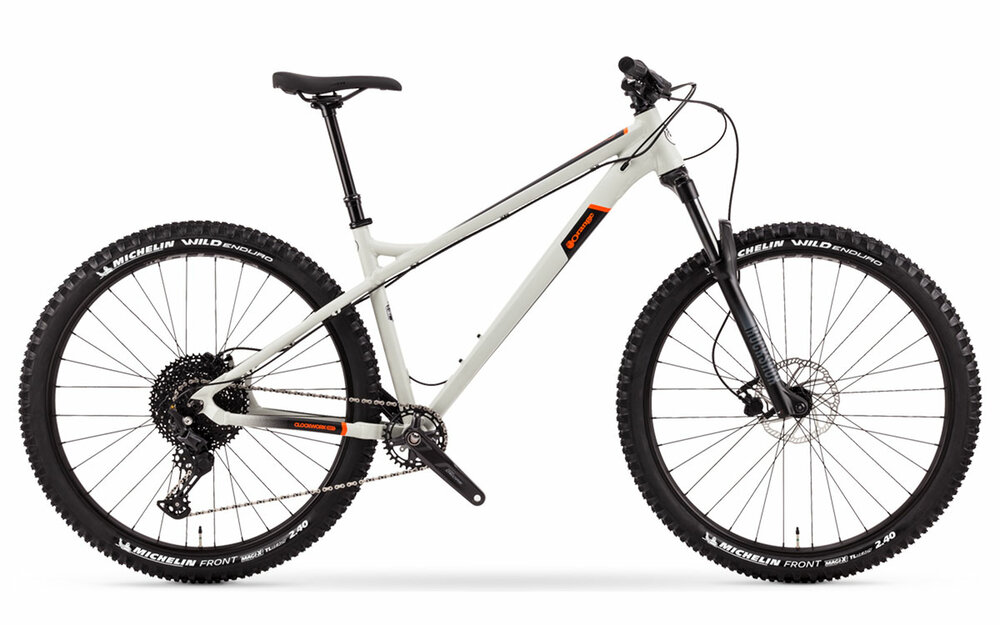

Orange Clockwork Evo 29 comp 2023
Product information
£1,899.00
£1,899.00
£1,899.00
Description
The new Clockwork EVO 29 pushes the 29er model into the hard & fast trail arena. Running a 130mm travel fork, this one's for the fast and loose big wheel hardtail fans out there.
Additional Information
Features
FRAME AND FORK
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Swingarm
Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Headset
FPD 44mm / 56mm zerostack
Fork
RockShox Recon Silver 130mm 29
DRIVETRAIN
Shifters
Shimano Deore 11spd
Cassette
Sunrace CSMS7 11-51t 11spd
Bottom Bracket
Prowheel
Crankset
Strange Prowheel Charm 170mm Narrow Wide 32t
Rear Mech
Shimano Deore 11spd
Chain
KMC 11spd
WHEEL AND TYRES
Wheelset
WTB ST i30 on Strange 29
Tyres
Michelin Wild Enduro Front 2.4 29
BRAKING
Brakes
Clarks M2 180/160
FINISHING KIT
Seatpost
KS Ragei 150/170mm Drop
Seat Clamp
Strange Bolted
Stem
Strange Stalk 40mm
Saddle
WTB Volt Steel
Handlebars
Strange 1" Rise 780mm
Grips
Strange Grappler Lock-On
GEOMETRY
CLOCKWORK EVO GEOMETRY
| 6061-T6 Custom Butted Aluminium | |||
| Frame Size | M | L | XL |
| Seat Tube Length | 17" | 18" | 19" |
| A. Head Angle | 65.5° | 65.5° | 65.5° |
| B. Seat Angle | 75.5° | 75.5° | 75.5° |
| C. Top Tube | 625 | 638 | 654 |
| D. Effective TT | 624 | 642 | 667 |
| E. BB Height (axle diff) | -68 | -68 | -68 |
| E. BB Height (from ground) | 296 | 296 | 296 |
| F. Chainstay | 450 | 450 | 450 |
| G. Head Tube | 120 | 130 | 135 |
| H. Wheelbase | 1215 | 1239 | 1261 |
| J. Reach | 455 | 475 | 495 |
| K. Stack | 654 | 663 | 668 |
| O. Fork Offset | 44 | 44 | 44 |
| Stem Length | 50 | 50 | 50 |
| Standover | 676 | 694 | 730 |
