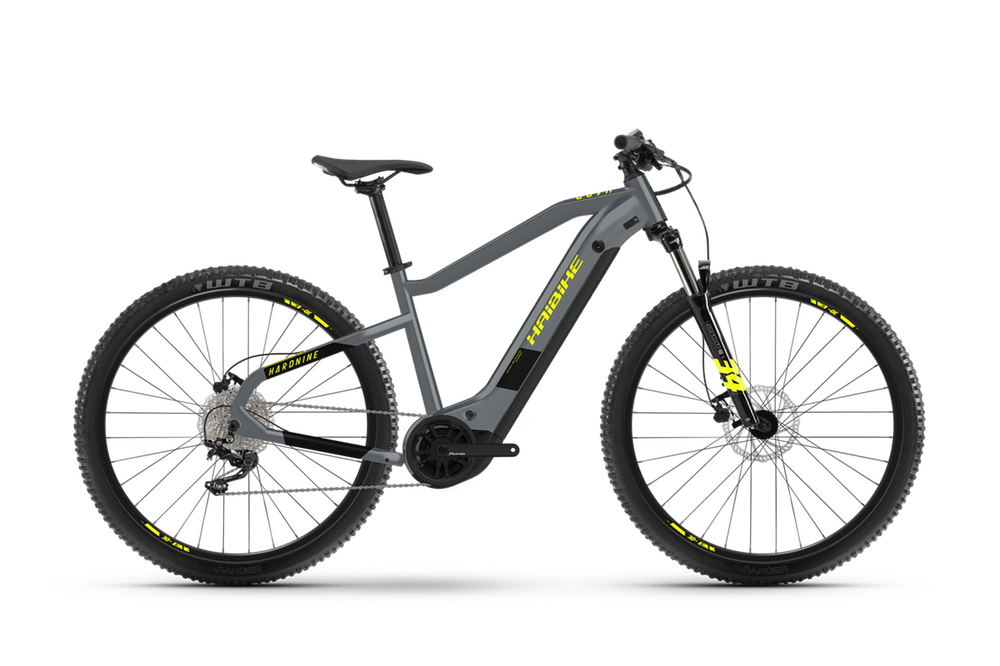

Haibike Hardnine 6

FRAME MATERIAL

Aluminium

DRIVE UNIT

Yamaha PW-ST System, 70Nm, 25km/h

BATTERY

InTube 630Wh

FORK

SR Suntour XCM34 NLO DS, Travel: 120mm

• • ENGINE

    Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h

  • DISPLAY

    Yamaha, Side Switch, 1.7" LCD, 7 functions

  • BATTERY

    InTube, 630 Wh

  • FRAME FAMILY

    Haibike, HardNine Yamaha i630, Aluminium 6061

  • FORK

    SR Suntour, XCM34 NLO DS, Steel spring/oil, Travel= 120 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost

  • CRANK ARM

    Haibike, forged, Aluminium

  • BRAKE (FRONT)

    Tektro, M275, 180 mm, 2-piston disc brake

  • BRAKE (REAR)

    Tektro, M275, 180 mm, 2-piston disc brake

  • TUBE

    Presta valve

  • RIM

    Rodi, Tryp 30, with eyelets, hollow rim, Aluminium

  • CLAMPING RING

    Quick release, 34.9 mm

  • REAR DERAILLEUR

    Shimano, Deore M4120

  • SHIFT LEVER

    Shimano, Deore M4100, Trigger switch, 10 Speed

  • BOTTOM BRACKET

    Integrated in the motor

  • SPROCKET

    Shimano, CSM4100, 11 - 42 teeth

  • CHAIN

    KMC, e10S

  • CHAINRING

    Steel, 38 teeth

  • CHAIN GUIDE

    Nylon directmount

  • BRAKE LEVER

    Tektro, M275, Aluminium

  • BRAKE DISC (FRONT)

    Tektro, TR180

  • BRAKE DISC (REAR)

    Tektro, TR180

  • TYRE

    WTB, Ranger Comp, 65-622, 29" x 2.6"

  • FRONT WHEEL HUB

    Haibike, Alu Nabe, 6-bolt standard

  • REAR WHEEL HUB

    Haibike, Alu Nabe, 6-bolt standard

  • SPOKES

    Sapim, Leader, Black

  • HANDLEBAR

    XLC, Topflat, 740 mm

  • GRIPS

    XLC, MTB grips

  • STEM

    XLC, Alu, A-Head

  • HEADSET

    Feimin, A-Head Tapered, Ball bearing

  • SADDLE

    XLC, MTB

  • SEAT POST

    XLC, Aluminium, Patent, 31.6 mm

  • PEDALS

    Freeridepedal , Aluminium, with Reflector,

  • PERMITTED TOTAL WEIGHT

    120.0 kg
