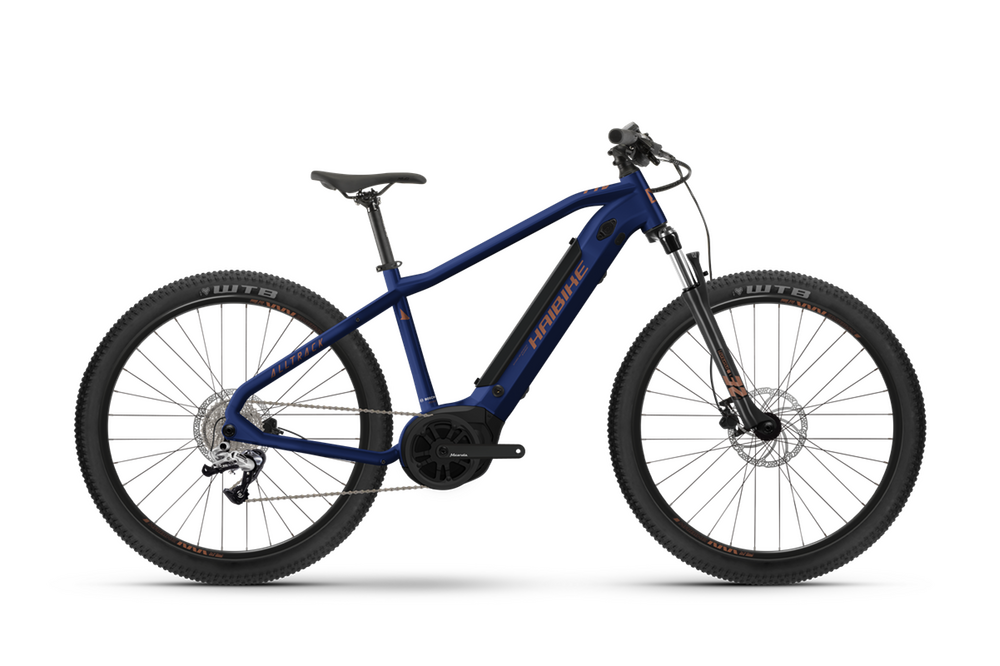

Haibike Alltrack 4 29
Product information
£1,999.00
£2,499.00
£1,999.00
Description
Are you looking for an entry-level hardtail eMTB with a powerful drive? Our new ALLTRACK 4 convinces with a sophisticated component mix, and a powerful Bosch Performance Line motor
Additional Information
Features
ABOUT THE BIKE
Are you looking for an entry-level hardtail eMTB with a powerful drive? Our new ALLTRACK 4 convinces with a sophisticated component mix, and a powerful Bosch Performance Line motor that offers you the right support in any terrain. Reliable Shimano shifting components and powerful disc brakes ensure a pleasureable and safe riding experience. The ALLTRACK 4 is available in frame sizes S and M with 27.5" wheels. The sizes M to XL roll on 29" tyres.
KEY FEATURES
-
FRAME MATERIAL
Aluminium
-
BATTERY
Bosch PowerTube 500Wh
-
FORK
SR Suntour XCM32 Boost DS, Travel: 120mm
-
DRIVE UNIT
Bosch Performance Line Smart System, 75Nm, 25km/h
SPECIFICATIONS
-
-
ENGINE
Bosch, Performance Line Gen3 60, 250W
-
DISPLAY
Bosch, LED Remote
-
BATTERY
Bosch, PowerTube, 500 Wh
-
FORK
SR Suntour, XCM32 Boost DS, Steel spring/oil, 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
-
CRANK ARM
Miranda No.7, Steel
-
BRAKE (FRONT)
Alhonga, HT472, Hydraulic disc brakes
-
BRAKE (REAR)
Alhonga, HT472, Hydraulic disc brakes
-
TUBE
Presta valve
-
RIM
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
-
CLAMPING RING
quick release, Quick release, 34.9 mm
-
REAR DERAILLEUR
Shimano, Alivio M3100
-
SHIFT LEVER
Shimano, Alivio M3100, Trigger switch
-
BOTTOM BRACKET
integrated in the motor
-
SPROCKET
Shimano, HG200, 11 - 36 teeth
-
CHAIN
KMC, e9S
-
CHAINRING
Steel, 38 teeth
-
CHAIN GUIDE
Nylon directmount
-
BRAKE LEVER
Alhonga, HT472, Aluminium,
-
BRAKE DISC (FRONT)
Alhonga, DXR1806, 180 mm
-
BRAKE DISC (REAR)
Alhonga, DXR1806, 180 mm
-
TYRE
WTB, Ranger Comp, 55-622, 29" x 2.3"
-
REAR WHEEL HUB
Alu Nabe, 6-bolt standard
-
SPOKES
Sapim, Leader, Black
-
HANDLEBAR
XLC, 720 mm
-
STEM
XLC, A-Head, A-head, 31.8 mm
-
HEADSET
Feimin, A-Head Tapered, Ball bearing
-
SADDLE
XLC, MTB
-
SEAT POST
XLC, Aluminium, Patent, 31.6 mm
-
PEDALS
Freeridepedal, Aluminium, with Reflector
-
PERMITTED TOTAL WEIGHT
120.0 kg
-
GEAR SHIFT
Shimano, Nexus
-
GEOMETRY
| FRAME SIZE (I.E. S, M, ...) | M | L | XL |
|---|---|---|---|
| AFRAME HEIGHT (CM) | 45.0 cm | 49.0 cm | 53.0 cm |
| BSEAT TUBE ANGLE | 75.0 degrees | 75.0 degrees | 75.0 degrees |
| DSEAT ANGLE | 75.0 degrees | 75.0 degrees | 75.0 degrees |
| EHEAD TUBE LENGTH | 120.0 mm | 135.0 mm | 160.0 mm |
| FHEAD TUBE ANGLE (DEGREES) | 65.0 degrees | 65.0 degrees | 65.0 degrees |
| GTOP TUBE HORIZONTAL | 606.0 mm | 639.0 mm | 671.0 mm |
| HCHAIN STAY LENGTH | 495.0 mm | 495.0 mm | 495.0 mm |
| IBOTTOM BRACKET DROP | -69.0 mm | -64.0 mm | -64.0 mm |
| JWHEELBASE | 1251.0 mm | 1278.0 mm | 1323.0 mm |
| KSTACK | 653.0 mm | 661.0 mm | 684.0 mm |
| LREACH | 427.0 mm | 457.0 mm | 483.0 mm |
